| System: | FV AQUA |
| Materiał: | PP-RCT |
| Standard: | ČSN EN ISO 15874, DIN 8077, DIN 8078, DIN 16962, DIN EN ISO 15874 |
| Uwaga: | Nadaje się do dystrybucji wody gorącej i wody grewczej. Zastosowanie do 20°C/2,0MPa - 70°C/1,0MPa do D=125 i zastosowanie do 20°C/1,6MPa - 70°C/0,8MPa dla D=160 i wyżej. |

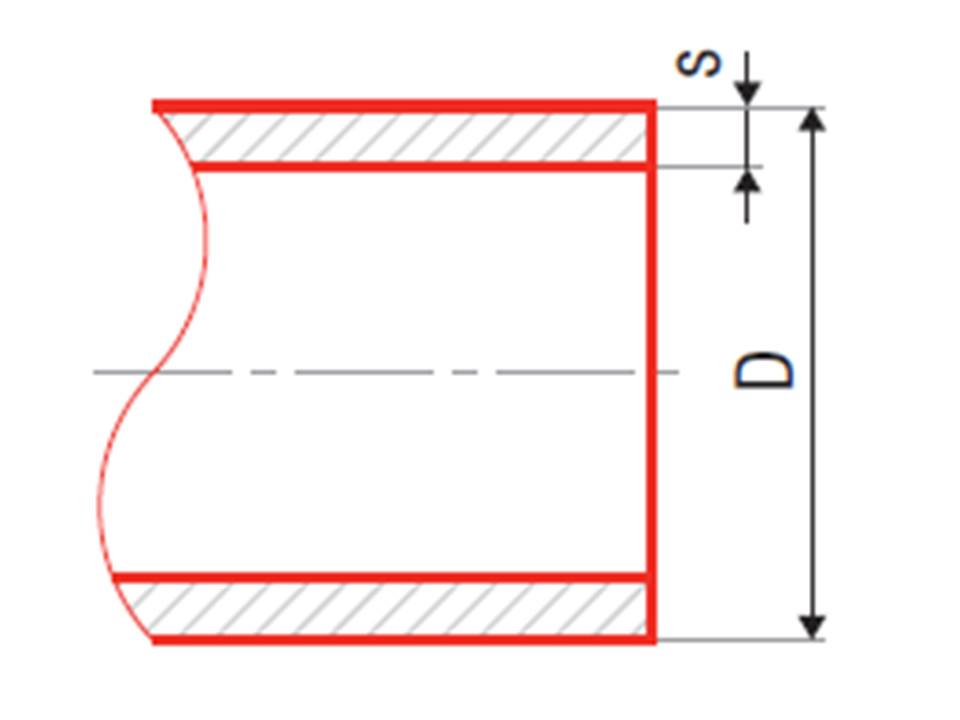

| Wymiary | Jednostka | Opakovanie | Waga [kg/m] | Objętość [dm3/m] | Numer katalogowy | Numer katalogowy - zielony | D | s | SDR (S) | l [m] |
|---|---|---|---|---|---|---|---|---|---|---|
| 20 x 2,8 | m | 100 | 0,151 | 0,44 | AA113020004 | BA113020004 | 20 | 2,8 | 7 (3,2) | 4 |
| 25 x 3,5 | m | 60 | 0,232 | 0,73 | AA113025004 | BA113025004 | 25 | 3,5 | 7 (3,2) | 4 |
| 32 x 3,6 | m | 40 | 0,340 | 1,10 | AA113032004 | BA113032004 | 32 | 3,6 | 9 (4) | 4 |
| 40 x 4,5 | m | 24 | 0,513 | 1,83 | AA113040004 | BA113040004 | 40 | 4,5 | 9 (4) | 4 |
| 50 x 5,6 | m | 16 | 0,746 | 2,75 | AA113050004 | BA113050004 | 50 | 5,6 | 9 (4) | 4 |
| 63 x 7,1 | m | 12 | 0,190 | 4,07 | AA113063004 | BA113063004 | 63 | 7,1 | 9 (4) | 4 |
| 75 x 8,4 | m | 8 | 1,700 | 5,50 | AA113075004 | BA113075004 | 75 | 8,4 | 9 (4) | 4 |
| 90 x 10,1 | m | 4 | 2,400 | 9,17 | AA113090004 | BA113090004 | 90 | 10,1 | 9 (4) | 4 |
| 110 x 12,3 | m | 4 | 3,400 | 10,31 | AA113110004 | BA113110004 | 110 | 12,3 | 9 (4) | 4 |
| 125 x 14,0 | m | 4 | 4,480 | 12,27 | BA113125004 | 125 | 14,0 | 9 (4) | 4 | |
| 125 x 14,0 | m | 6 | 4,480 | 12,27 | BA113125006 | 125 | 14,0 | 9 (4) | 6 | |
| 160 x 14,6 | m | 4 | 6,775 | 20,10 | BA113160004 | 160 | 14,6 | 11 (5) | 4 | |
| 160 x 14,6 | m | 6 | 6,775 | 20,10 | BA113160006 | 160 | 14,6 | 11 (5) | 6 | |
| 200 x 18,2 | m | 4 | 10,640 | 31,40 | BA113200004 | 200 | 18,2 | 11 (5) | 4 | |
| 200 x 18,2 | m | 6 | 10,640 | 31,40 | BA113200006 | 200 | 18,2 | 11 (5) | 6 | |
| 250 x 22,7 | m | 4 | 16,610 | 49,06 | BA113250004 | 250 | 22,7 | 11 (5) | 4 | |
| 250 x 22,7 | m | 6 | 16,610 | 49,06 | BA113250006 | 250 | 22,7 | 11 (5) | 6 |
